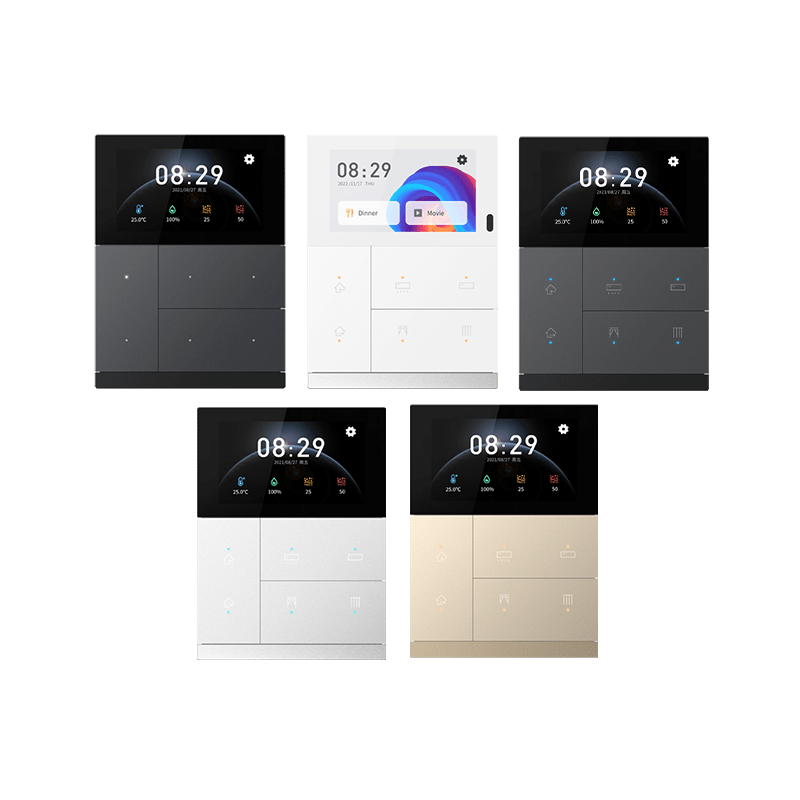

LANATECH KNX WaLANATECHz Touch+ Pad
3” IPS Touch Panel Control Interface.
This advanced 3-inch IPS touch panel features a high-resolution display (854 × 480) and offers a premium user experience with optional replaceable mechanical buttons in either metal or plastic finishes. The panel integrates built-in temperature, humidity, and proximity sensors, with animated visual effeLTs triggered upon button interaLTion for an enhanced user interface.
A dual-mode alarm funLTion and RGB LED status indicator further expand its funLTionality. It also includes 2-fold input support (binary or NTC).
Comprehensive KNX Integration
The device supports full KNX protocol funLTionality across 6 customizable control pages, including:
Switching,
Dimming,
Shutter control,
Scene control,
Value transmission,
RGB, RGBW, RGBCW, and color temperature control,
HVAC, AC, floor heating, and ventilation management,
Audio control,
Energy metering,
Air quality monitoring,
Additionally, it supports up to 8 event groups and 8 logic funLTions, with full icon customization for tailored interface design.
Model Variants
Plastic Button Models:
CHTFB-3.0/6.1.03 (Mystical Gray),
CHTFB-3.0/6.1.02 (Celestial Silver),
CHTFB-3.0/6.1.04 (Splendorous Gold),
CHTFB-3.0/6.1.00 (Crystal White),
CHTFB-3.0/6.1.01 (Classical Black).
Metal Button Models:
CHTFB-3.0/6.1.23 (Mystical Gray),
CHTFB-3.0/6.1.22 (Celestial Silver),
CHTFB-3.0/6.1.24 (Splendorous Gold),
CHTFB-3.0/6.1.21 (Classical Black).
Available Color Options:
Plastic Buttons: Mystical Gray, Celestial Silver, Splendorous Gold, Classical Black, Crystal White.
Metal Buttons: Mystical Gray, Celestial Silver, Splendorous Gold, Classical Black, Crystal White.
Product Details
- Code: LTWTPS
-
Model: CHTFB-3.0/6.1.20(White)
-
Dimension(mm): 115*86*34.7
-
Wall box Dimension: Wall mounted, fits in 86*86mm,German 60mm wall box
-
Color: Mystical Gray/ Celestial Silver/ Splendorous Gold
- Category: Automation
- Sub category: KNX Waltz Series Touch Pad & Push Button
- Brand: LANATECH
- Price: 0 USD
- View PDF
