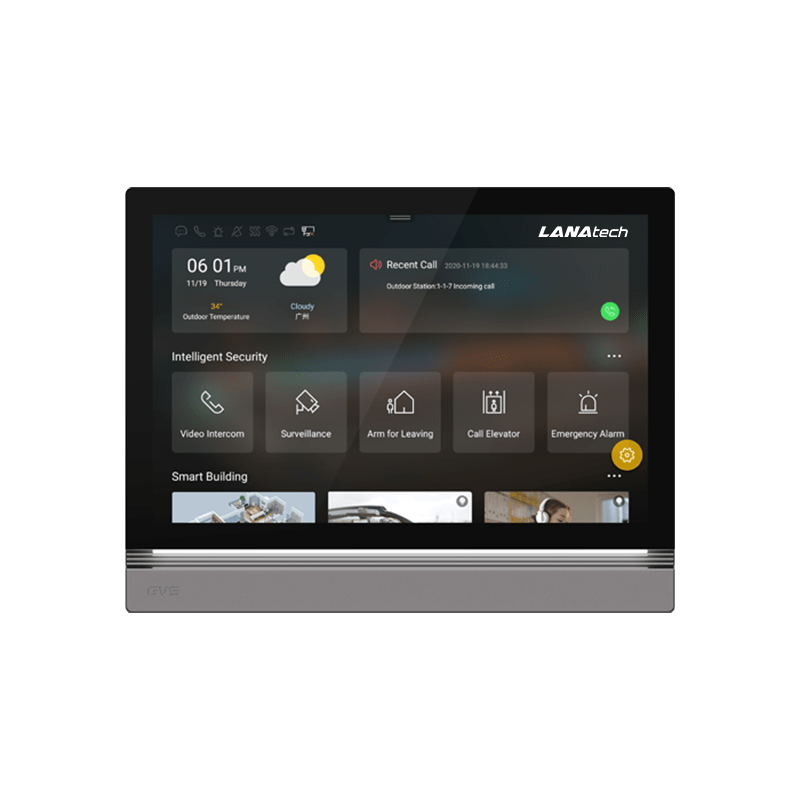

LANATECH Smart Home Server Z10
This advanced control panel features a 10.1-inch IPS touchscreen with a resolution of 1280×800, housed in a sleek aluminum faceplate. It includes an ambient LED light strip and a built-in temperature sensor for enhanced user experience.
Key Features:
Full KNX Integration: Supports both list-view and map-view interfaces for comprehensive control.
Intercom FunLTionality: Fully integrated audio and video intercom capabilities.
48V PoE Support: Simplified power and data conneLTion through Power over Ethernet.
IP Camera Integration: View and manage IP camera feeds direLTly from the panel.
Control Capabilities:
Up to 15 customizable control pages for:
Switching,
Dimming,
Shutter control,
Scene control,
Value sending,
RGB lighting,
HVAC,
Air conditioning,
Ventilation,
Floor heating,
Audio control,
Energy metering,
Air quality monitoring.
Automation & Logic:
Supports up to:
16 timers,
8 group event triggers,
8 logic funLTions.
Installation: Wall-mounted for seamless integration into any modern smart home or commercial environment.
Product Details
- Code: LTSHSZ10
-
Model: A-IS03
-
Dimension(mm): 186.8*240*40
-
Wall box Dimension: Wall mounted, fits in 86*86mm, German double-60mm
-
Color: Gray
- Category: Automation
- Sub category: Classic KNX Smart Touch Panel & Button
- Brand: LANATECH
- Price: 0 USD
- View PDF
