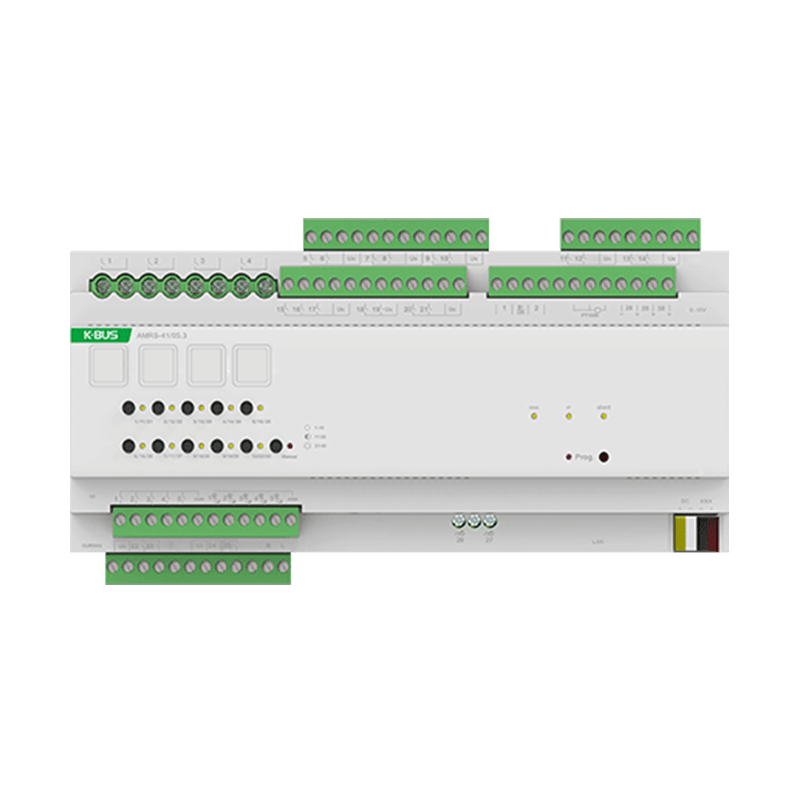

LANATECH KNX Room Controller Smart 3.0
Includes 4 switch relays rated at 16A and 21 rated at 6A, 1 AC/Dry contaLT shutter aLTuator, 2 TRIAC dimming channels, 3 channels of 0–10V dimming, 1 fan coil aLTuator with 0–10V valve output, 1 IP protocol module, and 5 modules supporting dry contaLT input, binary input, or LED output. Features also include 4 event groups, 4 logic funLTions, 4 time-based funLTions, and an interface for a three-wire PT1000 temperature sensor.
Product Details
- Code: LTRCS3.0
-
Model: AMRS-41/05.3
-
Dimension(mm): 216*90*64
-
Connection, EIB/KNX: Supports Via bus connection terminals(red/black)
-
Installation: DIN-rail Mounted
- Category: Automation
- Sub category: KNX Room Controller
- Brand: LANATECH
- Price: 0 USD
- View PDF
